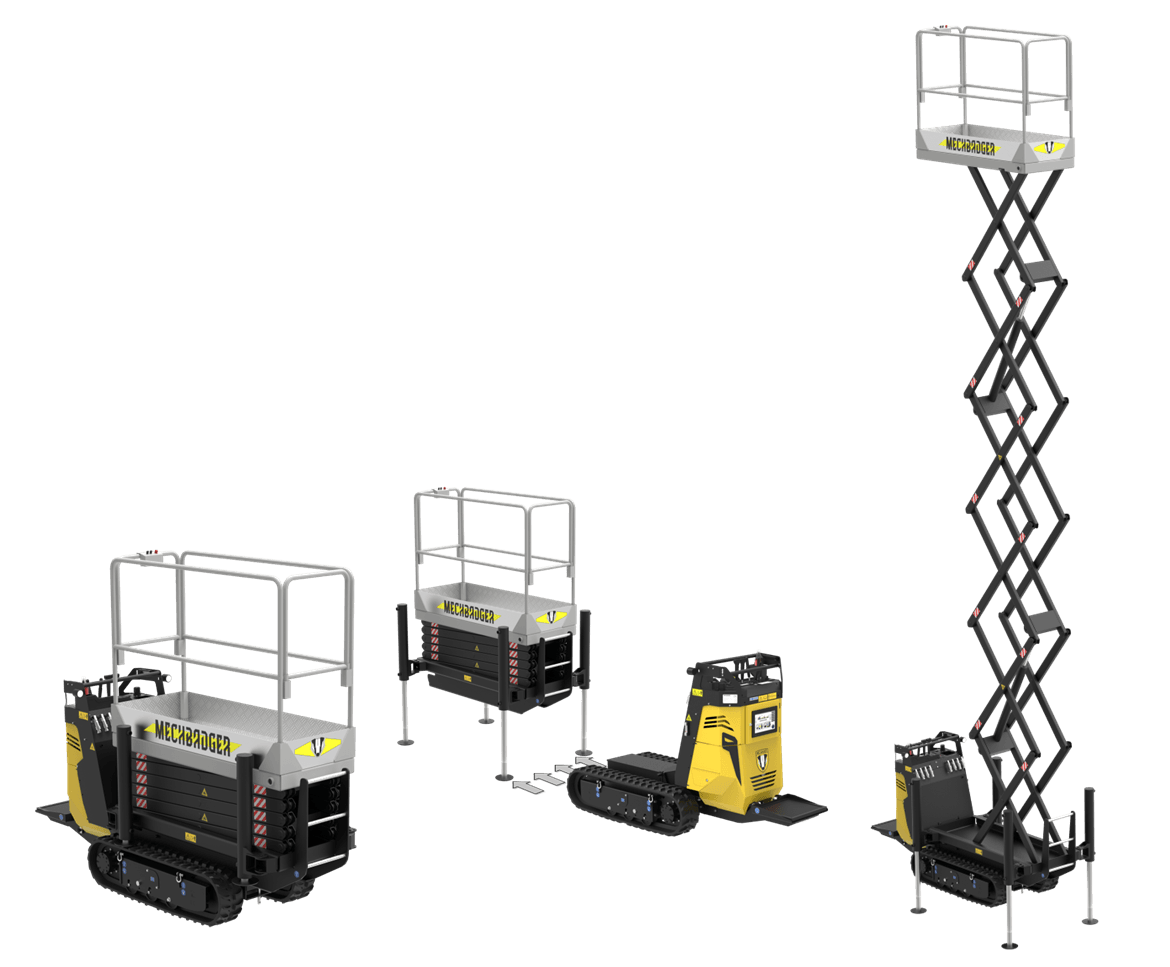

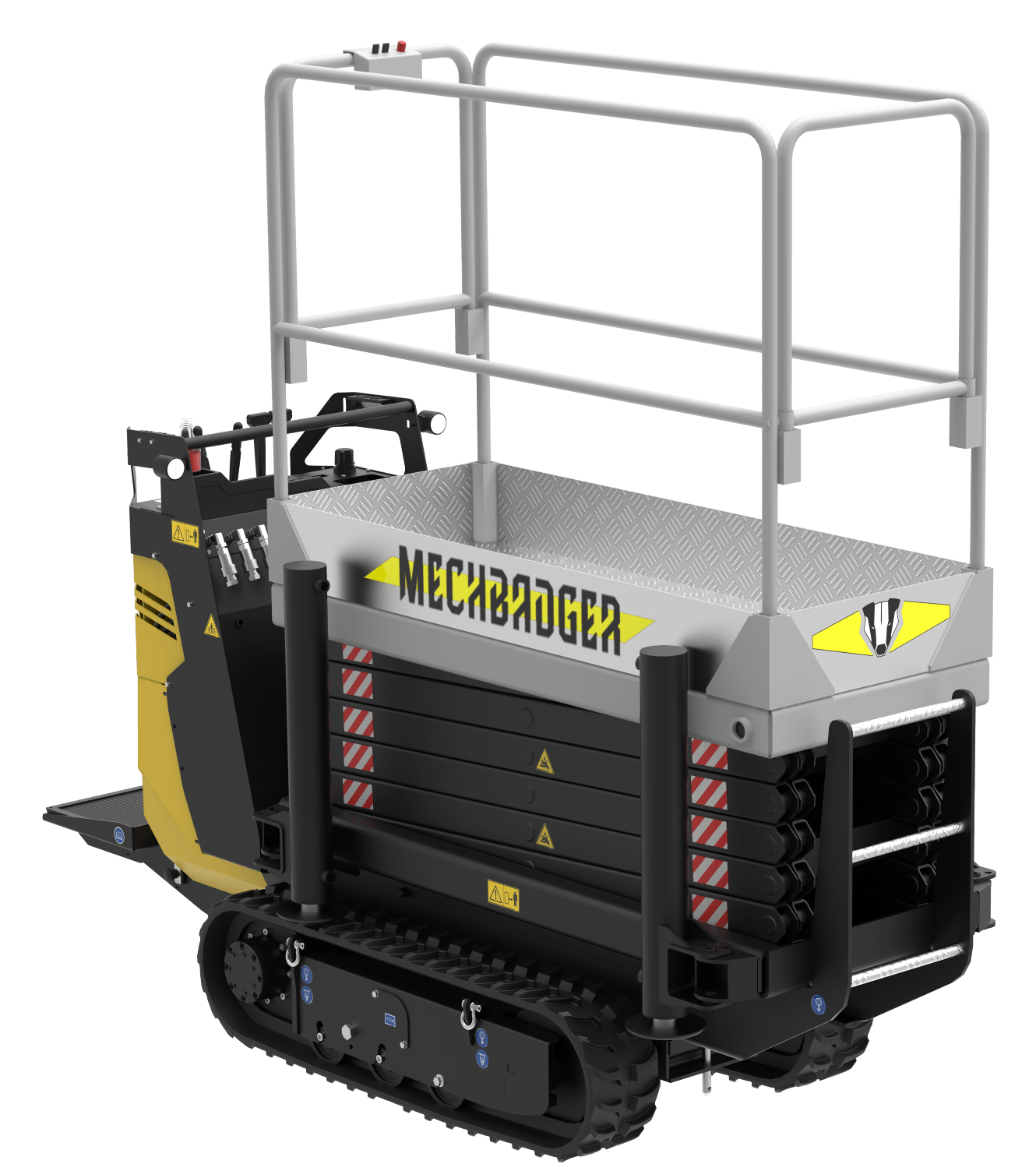

ELECTRIC PLATFORM
INNOVATION & RELIABILITY
The MECHBADGER Platform can be used on any surface with extreme precision thanks to its compact size and ergonomic controls. It gives its best when spaces are tight thanks to its agility and precision. Entirely designed and developed in ITALY, it represents the ELECTRIC multifunction machine par excellence
Motorisation
Powerful 100% electric motors with proportional speed regulation, equipped with hydrostatic traction which allows simple and comfortable use
Dimensions
Ultra-compact size, ideal for working in confined spaces and passing through standard doors, ensures maximum day-to-day efficiency
Design
The robust design ensures a long service life with low wear and tear, excellent ratio of low weight to maximum payload.
TECHNICAL FEATURES
Hydrostatic traction
- Simple and immediate ignition: thanks to the hydrostatic drive system, no frequent gear changes are required and the user can concentrate entirely on his work. Ideal for rental companies or if the user is replaced frequently.
- Hydraulically activated, pilot controlled forward and reverse lever for precision operation
- The hydraulically activated traction system and working hydraulics can be activated independently
- Reduction of maintenance and service costs thanks to the low-wear drive system
Maintenance
- Precious time can be saved during maintenance, resulting in cost savings, the electric motor does not need maintenance.
- Optimal service access to safely perform daily checkup procedures
- Quick access to maintenance points
Standard equipment
- Tracked undercarriage with hydrostatic transmission.
- Rubber tracks made in monobloc structure with steel wire core and treated steel inserts.
- 100% ELECTRIC engine, air cooling; automatic key start
- Manually operated hydrostatic transmission with triple gear pump and fixed displacement orbital motors. Steering by rotating the tracks.
- Ergonomic and cushioned operator platform
| Motor | 7 KW - 2600 RPM |
|---|---|
| Maximum current | 175 A |
| Voltage | 48 VDC |
| Drums | 150 Amp/h |
| Goodwill | Automatic |
| Travel motors | 20 Lt/min - 5.3 gpm |
| Negotiable slope | 70% ( 35° ) |
| Traction force | 10003 N - 2315 lb |
| Services pump | 30 Lt/min - 8gpm |
| Pressure Services | 150 bar - 2175 PSI |
| Weight ( PU Equipment ) | 1826 Kg ( 645 1181 ) - 3695lb |
| Scope | 200 Kg - 440 lb |
| Working height | 7050 mm - 23ft |
| Speed | 4.5 Km/h - 3mph |
Data, characteristics and illustrations are not binding and may be changed without notice.
Are interested? Contact us
INTERCHANGEABLE'

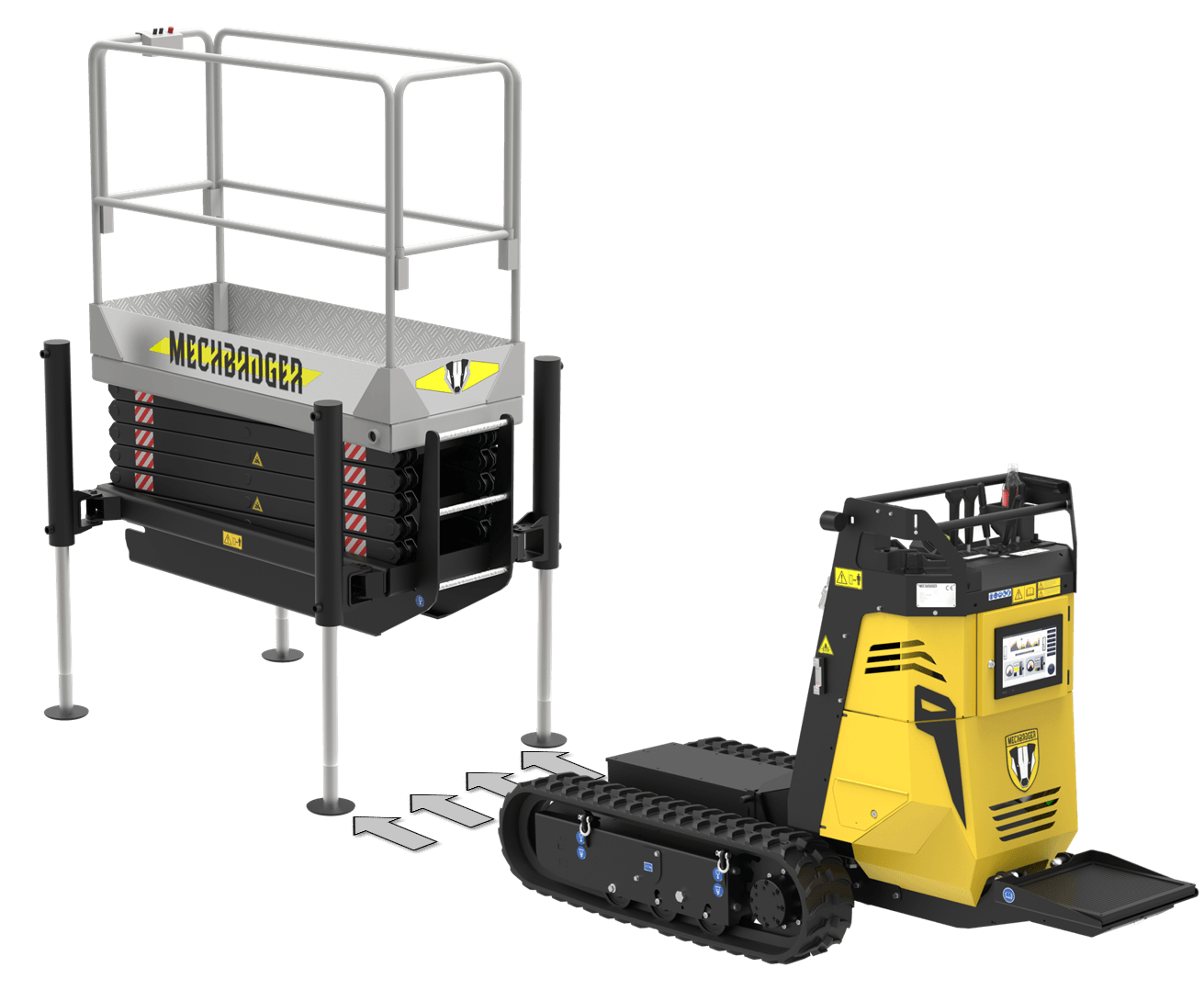

By configuring the Power Unit with a single piece of equipment, you will be able to purchase the equipment indicated below at any time, which can be quickly interchanged in less than 4 minutes, you will be able to use different complete machines with a single Power Unit.

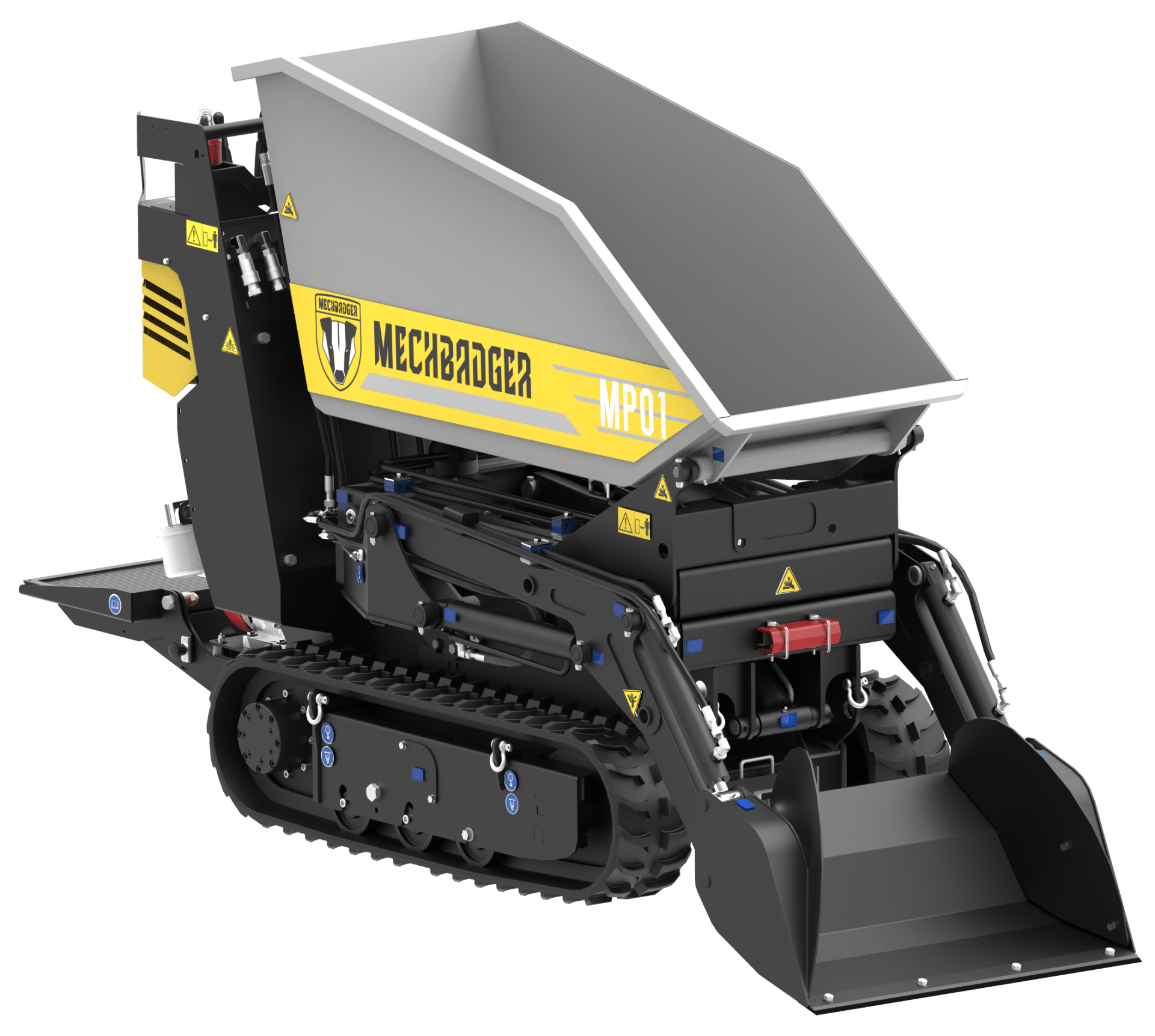

Dumper
Self loading and tipper
90° rotation of the caisson and elevation with pantograph

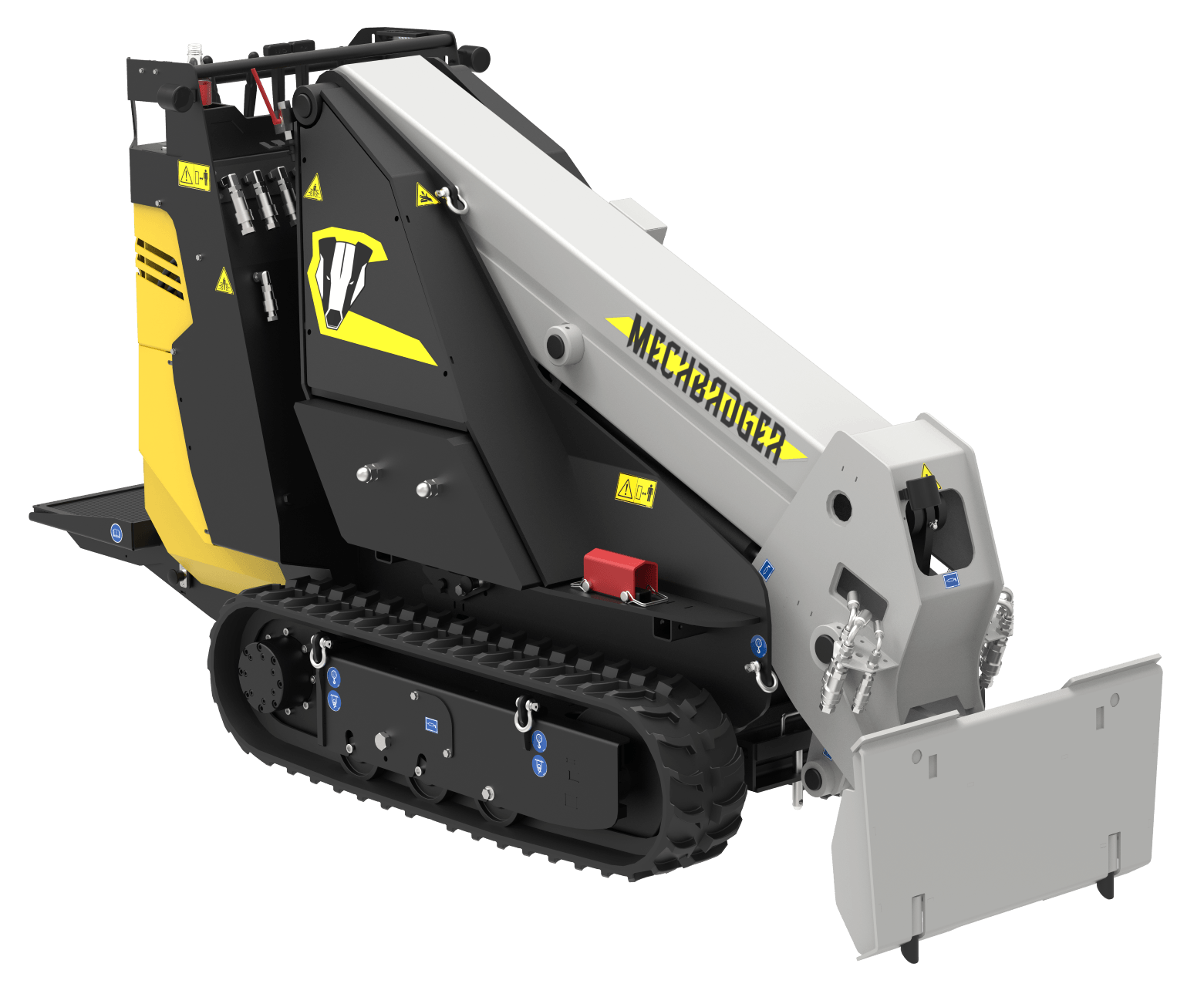

Pala Caricatrice
Configurable bucket leveling
Frontal quick coupling with hydraulic coupling
Excavator
Shape tipping
Front translatable plate and front leveling blade
Charger
Electronic Fork Leveling
Frontal quick coupling with hydraulic coupling
Concrete mixer
Self loading and bag breaker
90° rotation of the barrel and elevation with pantograph
YOUR Equipment
CUSTOM ON REQUEST
Together we will design the most congenial equipment for you.
